こんにちは、広野です。
コンテナがらみのリソースは CI/CD 環境がないとデプロイするまでがコマンドだらけになって嫌気がさすので、いつも最初に CI/CD 環境をつくることから始めています。Amazon Bedrock AgentCore Runtime は Amazon S3 に配置したソースコードからの簡単なデプロイもできるのですが、今後のスケールも考えてコンテナで最初から作ろうと思いました。

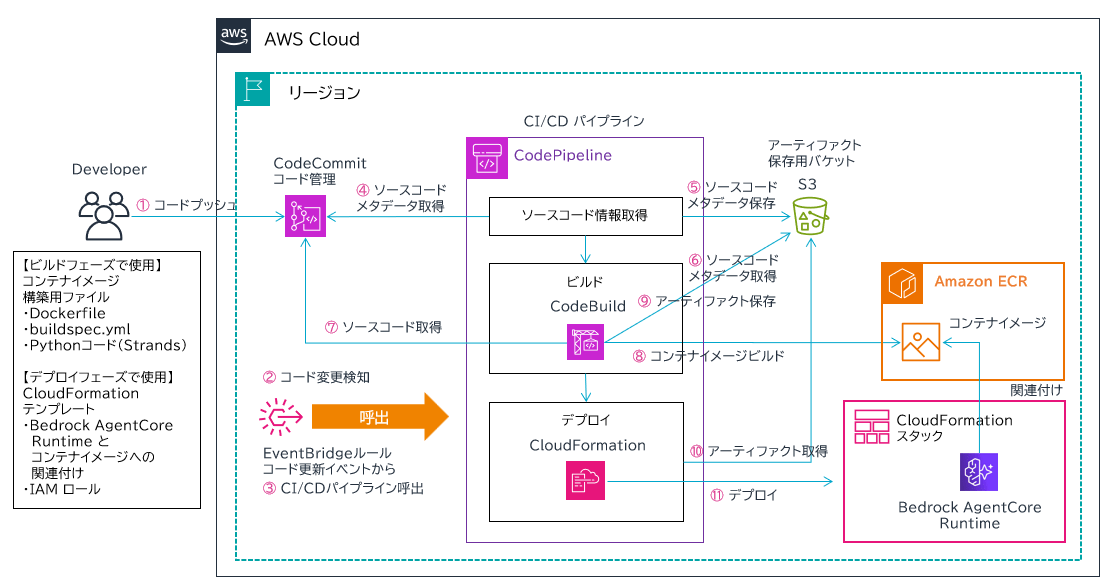

アーキテクチャ
以下のアーキテクチャで作っています。以前作成したコンテナ Lambda の CI/CD 環境と 9 割以上同じです。これを書いてて思いましたが AgentCore Runtime はコンテナ Lambda を作ったことがある人なら馴染み易いですね。
どのように動くか
開発環境 (IDE) で、以下のように必要なコード群を配置して AWS CodeCommit リポジトリに push します。

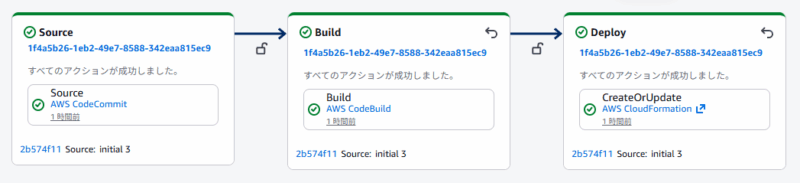

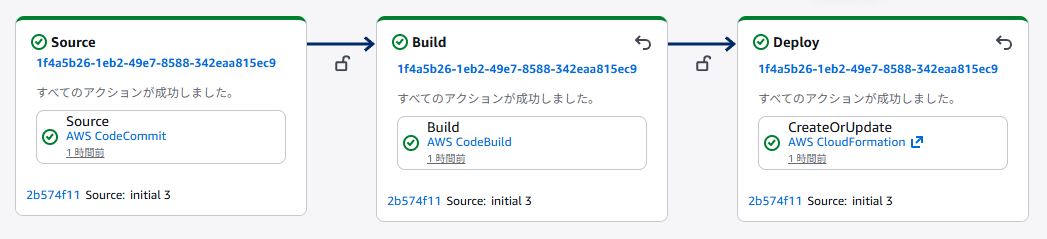

コードが CodeCommit にアップロードされると、以下のように AWS CodePipeline が動き出します。画像は正常完了後のものです。

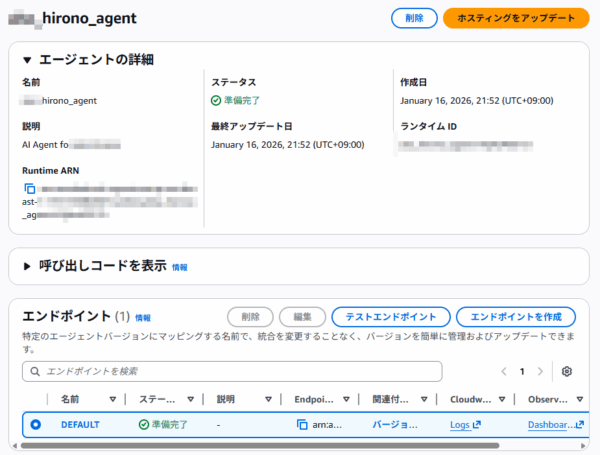

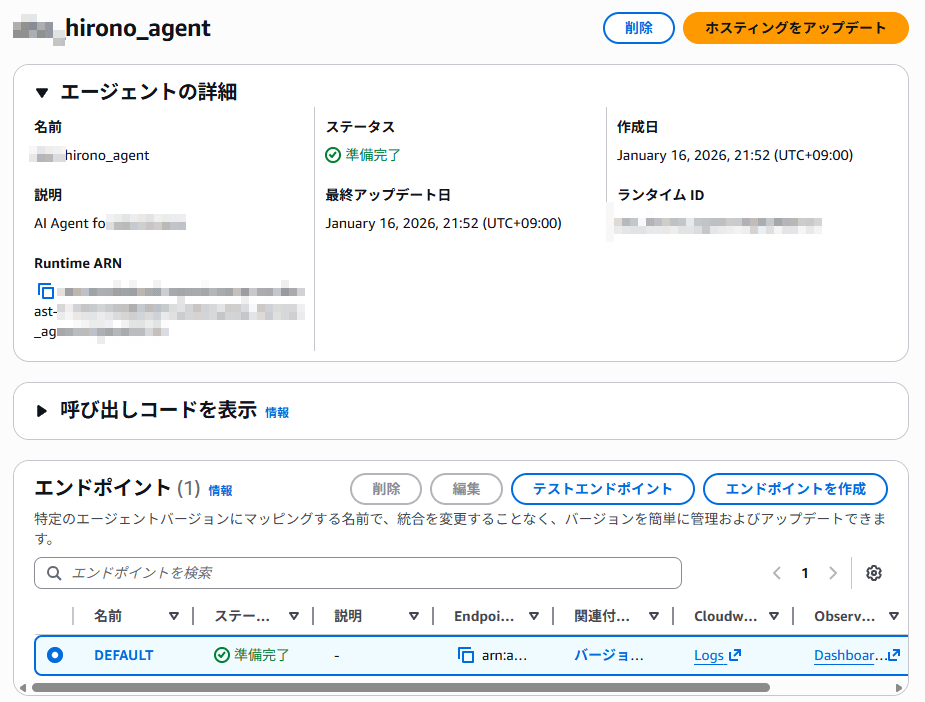

デプロイが完了すると、マネジメントコンソール内で Amazon Bedrock AgentCore Runtime が出来上がったことが確認できます。

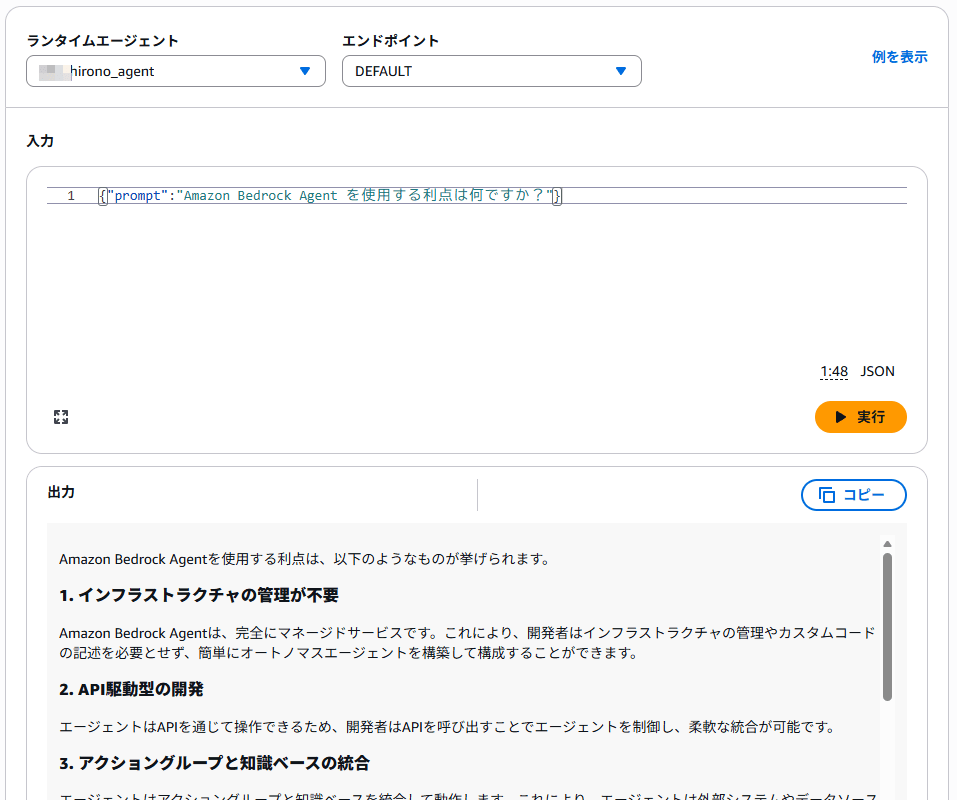

「テストエンドポイント」を押して動作を確認してみます。
今回は、AWS Knowledge MCP Server に問い合わせてくれる単純なエージェントを作りましたので、AWS に関する質問を投げてみます。※後ほどエージェントのコードは貼り付けます。
回答が長かったので画像は途中で切れてしまっていますが、しっかりと説明してくれました。
エージェントのコード
IDE 内で作成したエージェント用のコードです。これ自体は全然大したものではないです。動いたサンプル程度に思って下さい。
app.py (エージェントロジック)
シンプルに、MCP サーバーに聞きに行くだけのエージェントです。LLM は Amazon Nova 2 Lite を使っています。
import os
from strands import Agent
from strands.tools.mcp import MCPClient
from mcp.client.streamable_http import streamablehttp_client
from bedrock_agentcore import BedrockAgentCoreApp
os.environ["AWS_DEFAULT_REGION"] = "ap-northeast-1"
app = BedrockAgentCoreApp()
mcp = MCPClient(
lambda: streamablehttp_client(
"https://knowledge-mcp.global.api.aws"
)
)
@app.entrypoint
def invoke(payload):
user_message = payload.get("prompt", "プロンプトの取得に失敗したのでその旨ユーザーに伝えてください。")
try:
with mcp:
agent = Agent(
model="global.amazon.nova-2-lite-v1:0",
system_prompt="""あなたは AWS の技術仕様に精通したシニアソリューションアーキテクトです。
ユーザーの質問に対して、提供されたツールを使用して AWS 公式ドキュメントから正確な情報を取得し、
丁寧かつ専門的に回答してください。情報が見つからない場合は、推測で答えず正直に伝えてください。""",
tools=mcp.list_tools_sync()
)
result = agent(user_message)
return {"result": result.message}
except Exception as e:
app.logger.error(f"エージェントエラー: {e}")
return {"error": "エージェントの処理中にエラーが発生しました"}
if __name__ == "__main__":
app.run()
requirements.txt
これもシンプルに、インストールが必要な Python モジュールを並べただけです。
strands-agents bedrock-agentcore mcp
Dockerfile
AWS CodeBuild でビルドするときに使用します。
FROM --platform=linux/arm64 public.ecr.aws/docker/library/python:3.14-slim WORKDIR /app COPY requirements.txt . RUN pip install --no-cache-dir -r requirements.txt COPY app.py . EXPOSE 8080 ENTRYPOINT ["python", "app.py"]
使用するコンテナイメージは Python 3.14 のスリムなものにしました。Amazon S3 からデプロイするときは執筆時点では Python 3.13 が最新のバージョンとして選べるようでしたが、コンテナイメージだとビルド環境の制約に依存しそうです。
requirements.txt を元にモジュールをインストールし、app.py を配置します。
buildspec.yml
AWS CodeBuild でビルドするときに使用します。
Amazon Bedrock AgentCore Runtime は ARM64 アーキテクチャで動作するので、コンテナイメージをビルドするコマンドに明示的に ARM64 を使用するオプションを付けます。$マークの環境変数が記載されていますが、これは CodeBuild から渡されます。
version: 0.2
phases:
pre_build:
commands:
- echo Logging in to Amazon ECR...
- aws ecr get-login-password --region $AWS_DEFAULT_REGION | docker login --username AWS --password-stdin $AWS_ACCOUNT_ID.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com
build:
commands:
- echo Building the Docker image...
- docker build --platform linux/arm64 -t $IMAGE_REPO_NAME:$IMAGE_TAG .
- docker tag $IMAGE_REPO_NAME:$IMAGE_TAG $AWS_ACCOUNT_ID.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/$IMAGE_REPO_NAME:$IMAGE_TAG
post_build:
commands:
- echo Pushing the Docker image...
- docker push $AWS_ACCOUNT_ID.dkr.ecr.$AWS_DEFAULT_REGION.amazonaws.com/$IMAGE_REPO_NAME:$IMAGE_TAG
artifacts:
files:
- cfn_agentcore_runtime.yml
cfn_agentcore_runtime.yml
デプロイフェーズで使用します。
ビルドフェーズでは、ここまでのファイルを使用してコンテナイメージを作成し、Amazon ECR リポジトリに保存するまでを担当しました。
デプロイフェーズでは、作成されたコンテナイメージから Amazon Bedrock AgentCore Runtime をデプロイします。このとき、アタッチする IAM ロールも作成します。今後別の機能を使用することを想定して、広めに権限を付けています。
Parameters で定義されているパラメータは、AWS CodePipeline から環境変数を渡されオーバーライドされます。値は何でもいいのですがパラメータの定義をしておかないと、エラーになります。
AWSTemplateFormatVersion: 2010-09-09
Description: The CloudFormation template that creates a Bedrock AgentCore runtime and a relevant IAM role.
# ------------------------------------------------------------#
# Input Parameters
# ------------------------------------------------------------#
Parameters:
SystemName:
Type: String
Description: System name. use lower case only. (e.g. example)
Default: example
MaxLength: 10
MinLength: 1
SubName:
Type: String
Description: System sub name. use lower case only. (e.g. prod or dev)
Default: dev
MaxLength: 10
MinLength: 1
ImageTag:
Type: String
Default: xxxxxxxxxxxxxxxxxxxx
MaxLength: 100
MinLength: 1
ImgRepoName:
Type: String
Default: xxxxxxxxxxxxxxxxxxxx
MaxLength: 100
MinLength: 1
Resources:
# ------------------------------------------------------------#
# Bedrock AgentCore Runtime
# ------------------------------------------------------------#
AgentCoreRuntime:
Type: AWS::BedrockAgentCore::Runtime
Properties:
AgentRuntimeName: !Sub ${SystemName}_${SubName}_agent
Description: !Sub AI Agent for ${SystemName}-${SubName}
AgentRuntimeArtifact:
ContainerConfiguration:
ContainerUri: !Sub ${AWS::AccountId}.dkr.ecr.${AWS::Region}.amazonaws.com/${ImgRepoName}:${ImageTag}
NetworkConfiguration:
NetworkMode: PUBLIC
ProtocolConfiguration: HTTP
RequestHeaderConfiguration:
RequestHeaderAllowlist:
- Authorization
RoleArn: !GetAtt AgentCoreRuntimeRole.Arn
Tags:
Cost: !Sub ${SystemName}-${SubName}
DependsOn:
- AgentCoreRuntimeRole
# ------------------------------------------------------------#
# Bedrock AgentCore Runtime Role (IAM)
# ------------------------------------------------------------#
AgentCoreRuntimeRole:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub AgentCoreRuntimeRole-${SystemName}-${SubName}
Description: This role allows Bedrock AgentCore Runtime to invoke models and push logs.
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- bedrock-agentcore.amazonaws.com
Action:
- sts:AssumeRole
Condition:
StringEquals:
"aws:SourceAccount": !Ref AWS::AccountId
ArnLike:
"aws:SourceArn": !Sub "arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:*"
Path: /
ManagedPolicyArns:
- arn:aws:iam::aws:policy/AWSXRayDaemonWriteAccess
Policies:
- PolicyName: !Sub AgentCoreRuntimePolicy-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Action:
- logs:DescribeLogStreams
- logs:CreateLogGroup
Resource:
- !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/bedrock-agentcore/runtimes/*
- Effect: Allow
Action:
- logs:DescribeLogGroups
Resource:
- !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:*
- Effect: Allow
Action:
- logs:CreateLogStream
- logs:PutLogEvents
Resource:
- !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/bedrock-agentcore/runtimes/*:log-stream:*
- Effect: Allow
Action: cloudwatch:PutMetricData
Resource: "*"
Condition:
StringEquals:
cloudwatch:namespace: bedrock-agentcore
- Effect: Allow
Action:
- logs:CreateLogGroup
- logs:PutDeliverySource
- logs:PutDeliveryDestination
- logs:CreateDelivery
- logs:GetDeliverySource
- logs:DeleteDeliverySource
- logs:DeleteDeliveryDestination
Resource: "*"
- Sid: BedrockModelInvocation
Effect: Allow
Action:
- bedrock:InvokeModel
- bedrock:InvokeModelWithResponseStream
- bedrock:ApplyGuardrail
Resource:
- arn:aws:bedrock:*::foundation-model/*
- arn:aws:bedrock:*:*:inference-profile/*
- !Sub arn:aws:bedrock:${AWS::Region}:${AWS::AccountId}:*
- Effect: Allow
Action:
- ecr:BatchGetImage
- ecr:GetDownloadUrlForLayer
Resource:
- !Sub arn:aws:ecr:${AWS::Region}:${AWS::AccountId}:repository/${ImgRepoName}
- Effect: Allow
Action:
- ecr:GetAuthorizationToken
Resource: "*"
- Effect: Allow
Action:
- bedrock-agentcore:GetWorkloadAccessToken
- bedrock-agentcore:GetWorkloadAccessTokenForJWT
- bedrock-agentcore:GetWorkloadAccessTokenForUserId
Resource:
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default/workload-identity/${SystemName}_${SubName}_agent-*
- Effect: Allow
Action:
- bedrock-agentcore:GetResourceApiKey
Resource:
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:token-vault/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:token-vault/default/apikeycredentialprovider/*
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default/workload-identity/*
- Effect: Allow
Action:
- secretsmanager:GetSecretValue
Resource:
- !Sub arn:aws:secretsmanager:${AWS::Region}:${AWS::AccountId}:secret:bedrock-agentcore-identity!default/oauth2/*
- !Sub arn:aws:secretsmanager:${AWS::Region}:${AWS::AccountId}:secret:bedrock-agentcore-identity!default/apikey/*
- Effect: Allow
Action:
- bedrock-agentcore:GetResourceOauth2Token
Resource:
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:token-vault/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:token-vault/default/oauth2credentialprovider/*
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default/workload-identity/${SystemName}_${SubName}_agent-*
- Effect: Allow
Action:
- aws-marketplace:ViewSubscriptions
- aws-marketplace:Subscribe
Resource: "*"
Condition:
StringEquals:
aws:CalledViaLast: bedrock.amazonaws.com
- Effect: Allow
Action:
- bedrock-agentcore:StartCodeInterpreterSession
- bedrock-agentcore:InvokeCodeInterpreter
- bedrock-agentcore:StopCodeInterpreterSession
- bedrock-agentcore:GetCodeInterpreter
- bedrock-agentcore:GetCodeInterpreterSession
- bedrock-agentcore:ListCodeInterpreterSessions
Resource:
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:aws:code-interpreter/aws.codeinterpreter.v1
- Effect: Allow
Action:
- bedrock-agentcore:CreateWorkloadIdentity
- bedrock-agentcore:GetWorkloadAccessTokenForUserId
Resource:
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default
- !Sub arn:aws:bedrock-agentcore:${AWS::Region}:${AWS::AccountId}:workload-identity-directory/default/workload-identity/*
- Effect: Allow
Action: sts:GetWebIdentityToken
Resource: "*"
# ------------------------------------------------------------#
# Output Parameters
# ------------------------------------------------------------#
Outputs:
# AgentCore
AgentRuntimeArn:
Value: !GetAtt AgentCoreRuntime.AgentRuntimeArn
AgentRuntimeId:
Value: !GetAtt AgentCoreRuntime.AgentRuntimeId
AgentRuntimeVersion:
Value: !GetAtt AgentCoreRuntime.AgentRuntimeVersion
CI/CD 環境の AWS CloudFormation テンプレート
最後になりましたが、まずこれを流して CI/CD 環境を構築しました。これがないと何も始まらないです。(私は)
AgentCore Runtime 用に気を付けたのは、ARM64 用のビルド環境にすることです。”aws/codebuild/amazonlinux-aarch64-standard:3.0″ というイメージを指定しています。
AWSTemplateFormatVersion: 2010-09-09
Description: The CloudFormation template that creates a CI/CD environment for the AI agent. The created container image runs in Amazon Bedrock AgentCore.
# ------------------------------------------------------------#
# Input Parameters
# ------------------------------------------------------------#
Parameters:
SystemName:
Type: String
Description: System name. use lower case only. (e.g. example)
Default: example
MaxLength: 10
MinLength: 1
AllowedPattern: "^[a-z0-9]+$"
SubName:
Type: String
Description: System sub name. use lower case only. (e.g. prod or dev)
Default: dev
MaxLength: 10
MinLength: 1
AllowedPattern: "^[a-z0-9]+$"
Metadata:
AWS::CloudFormation::Interface:
ParameterGroups:
- Label:
default: "General Configuration"
Parameters:
- SystemName
- SubName
Resources:
# ------------------------------------------------------------#
# S3
# ------------------------------------------------------------#
S3BucketArtifact:
Type: AWS::S3::Bucket
Properties:
BucketName: !Sub ${SystemName}-${SubName}-aiagent-artifact
LifecycleConfiguration:
Rules:
- Id: AutoDelete
Status: Enabled
ExpirationInDays: 14
PublicAccessBlockConfiguration:
BlockPublicAcls: true
BlockPublicPolicy: true
IgnorePublicAcls: true
RestrictPublicBuckets: true
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
S3BucketLogs:
Type: AWS::S3::Bucket
Properties:
BucketName: !Sub ${SystemName}-${SubName}-aiagent-logs
LifecycleConfiguration:
Rules:
- Id: AutoDelete
Status: Enabled
ExpirationInDays: 365
PublicAccessBlockConfiguration:
BlockPublicAcls: true
BlockPublicPolicy: true
IgnorePublicAcls: true
RestrictPublicBuckets: true
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
# ------------------------------------------------------------#
# ECR
# ------------------------------------------------------------#
EcrRepositoryAiAgent:
Type: AWS::ECR::Repository
Properties:
RepositoryName: !Sub ${SystemName}-${SubName}-aiagent
EncryptionConfiguration:
EncryptionType: AES256
ImageScanningConfiguration:
ScanOnPush: true
ImageTagMutability: IMMUTABLE
LifecyclePolicy:
LifecyclePolicyText: |
{
"rules": [
{
"rulePriority": 1,
"description": "Keep only 5 images, expire all others",
"selection": {
"tagStatus": "any",
"countType": "imageCountMoreThan",
"countNumber": 5
},
"action": {
"type": "expire"
}
}
]
}
EmptyOnDelete: true
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
# ------------------------------------------------------------#
# CodeCommit Repository
# ------------------------------------------------------------#
CodeCommitRepoAiAgent:
Type: AWS::CodeCommit::Repository
Properties:
RepositoryName: !Sub ${SystemName}-${SubName}-aiagent
RepositoryDescription: !Sub AI Agent for ${SystemName}-${SubName}
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
# ------------------------------------------------------------#
# CodePipeline
# ------------------------------------------------------------#
CodePipelineAiAgent:
Type: AWS::CodePipeline::Pipeline
Properties:
Name: !Sub ${SystemName}-${SubName}-aiagent
PipelineType: V2
ArtifactStore:
Location: !Ref S3BucketArtifact
Type: S3
RestartExecutionOnUpdate: false
RoleArn: !GetAtt CodePipelineServiceRoleAiAgent.Arn
Stages:
- Name: Source
Actions:
- Name: Source
RunOrder: 1
ActionTypeId:
Category: Source
Owner: AWS
Version: 1
Provider: CodeCommit
Configuration:
RepositoryName: !GetAtt CodeCommitRepoAiAgent.Name
BranchName: main
PollForSourceChanges: false
OutputArtifactFormat: CODEBUILD_CLONE_REF
Namespace: SourceVariables
OutputArtifacts:
- Name: Source
- Name: Build
Actions:
- Name: Build
RunOrder: 1
Region: !Sub ${AWS::Region}
ActionTypeId:
Category: Build
Owner: AWS
Version: 1
Provider: CodeBuild
Configuration:
ProjectName: !Ref CodeBuildProjectAiAgent
BatchEnabled: false
EnvironmentVariables: |
[
{
"name": "IMAGE_TAG",
"type": "PLAINTEXT",
"value": "#{codepipeline.PipelineExecutionId}"
}
]
Namespace: BuildVariables
InputArtifacts:
- Name: Source
OutputArtifacts:
- Name: Build
- Name: Deploy
Actions:
- ActionTypeId:
Category: Deploy
Owner: AWS
Provider: CloudFormation
Version: 1
Configuration:
StackName: !Sub ${SystemName}-${SubName}-agentcore-runtime
Capabilities: CAPABILITY_NAMED_IAM
RoleArn: !GetAtt CodePipelineDeployCreateUpdateRoleAiAgent.Arn
ActionMode: CREATE_UPDATE
TemplatePath: Build::cfn_agentcore_runtime.yml
ParameterOverrides: !Sub '{"SystemName":"${SystemName}","SubName":"${SubName}","ImageTag":"#{codepipeline.PipelineExecutionId}","ImgRepoName":"${EcrRepositoryAiAgent}"}'
InputArtifacts:
- Name: Build
Name: CreateOrUpdate
RoleArn: !GetAtt CodePipelineDeployCreateUpdateActionRoleAiAgent.Arn
RunOrder: 1
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
DependsOn:
- CodePipelineServiceRoleAiAgent
- CodeBuildProjectAiAgent
- CodePipelineDeployCreateUpdateActionRoleAiAgent
- EcrRepositoryAiAgent
# ------------------------------------------------------------#
# CodePipeline Service Role (IAM)
# ------------------------------------------------------------#
CodePipelineServiceRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub CpServiceRoleAiAgent-${SystemName}-${SubName}
Description: This role allows CodePipeline to call each stages.
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- codepipeline.amazonaws.com
Action:
- sts:AssumeRole
Path: /
Policies:
- PolicyName: !Sub CpServicePolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Action:
- "codecommit:CancelUploadArchive"
- "codecommit:GetBranch"
- "codecommit:GetCommit"
- "codecommit:GetRepository"
- "codecommit:GetUploadArchiveStatus"
- "codecommit:UploadArchive"
Resource: !GetAtt CodeCommitRepoAiAgent.Arn
- Effect: Allow
Action:
- "codebuild:BatchGetBuilds"
- "codebuild:StartBuild"
- "codebuild:BatchGetBuildBatches"
- "codebuild:StartBuildBatch"
Resource: "*"
- Effect: Allow
Action:
- "cloudwatch:*"
- "s3:*"
Resource: "*"
- Effect: Allow
Action:
- "lambda:InvokeFunction"
- "lambda:ListFunctions"
Resource: "*"
- Effect: Allow
Action: "sts:AssumeRole"
Resource:
- !GetAtt CodePipelineDeployCreateUpdateActionRoleAiAgent.Arn
DependsOn:
- CodeCommitRepoAiAgent
- CodePipelineDeployCreateUpdateActionRoleAiAgent
# ------------------------------------------------------------#
# CodePipeline Deploy Create Update Role (IAM)
# ------------------------------------------------------------#
CodePipelineDeployCreateUpdateRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub CpCrUpdRoleAiAgent-${SystemName}-${SubName}
AssumeRolePolicyDocument:
Statement:
- Action: sts:AssumeRole
Effect: Allow
Principal:
Service: cloudformation.amazonaws.com
Version: "2012-10-17"
Path: /
Policies:
- PolicyName: !Sub CpCrUpdPolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Action: "*"
Effect: Allow
Resource: "*"
# ------------------------------------------------------------#
# CodePipeline Deploy Create Update Action Role (IAM)
# ------------------------------------------------------------#
CodePipelineDeployCreateUpdateActionRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub CpCrUpdActionRoleAiAgent-${SystemName}-${SubName}
AssumeRolePolicyDocument:
Statement:
- Action: sts:AssumeRole
Effect: Allow
Principal:
AWS:
Fn::Join:
- ""
- - "arn:"
- Ref: AWS::Partition
- ":iam::"
- Ref: AWS::AccountId
- :root
Version: "2012-10-17"
Path: /
ManagedPolicyArns:
- arn:aws:iam::aws:policy/AWSCloudFormationFullAccess
Policies:
- PolicyName: !Sub CpCrUpdPolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Action: iam:PassRole
Effect: Allow
Resource: !GetAtt CodePipelineDeployCreateUpdateRoleAiAgent.Arn
- Action:
- s3:GetBucket*
- s3:GetObject*
- s3:List*
Effect: Allow
Resource:
- !Sub arn:aws:s3:::${S3BucketArtifact}
- !Sub arn:aws:s3:::${S3BucketArtifact}/*
DependsOn:
- CodePipelineDeployCreateUpdateRoleAiAgent
- S3BucketArtifact
# ------------------------------------------------------------#
# EventBridge Rule for Starting CodePipeline
# ------------------------------------------------------------#
EventBridgeRuleStartCodePipelineAiAgent:
Type: AWS::Events::Rule
Properties:
Name: !Sub ${SystemName}-${SubName}-aiagent-start-codepipeline
Description: !Sub This rule starts pptx pdf converter CodePipeline for ${SystemName}-${SubName}. The trigger is the source code change in CodeCommit.
EventBusName: !Sub "arn:aws:events:${AWS::Region}:${AWS::AccountId}:event-bus/default"
EventPattern:
source:
- "aws.codecommit"
detail-type:
- "CodeCommit Repository State Change"
resources:
- !GetAtt CodeCommitRepoAiAgent.Arn
detail:
event:
- referenceCreated
- referenceUpdated
referenceType:
- branch
referenceName:
- main
RoleArn: !GetAtt EventBridgeRuleStartCpRoleAiAgent.Arn
State: ENABLED
Targets:
- Arn: !Sub "arn:aws:codepipeline:${AWS::Region}:${AWS::AccountId}:${CodePipelineAiAgent}"
Id: !Sub ${SystemName}-${SubName}-aiagent-start-codepipeline
RoleArn: !GetAtt EventBridgeRuleStartCpRoleAiAgent.Arn
DependsOn:
- EventBridgeRuleStartCpRoleAiAgent
# ------------------------------------------------------------#
# EventBridge Rule Start CodePipeline Role (IAM)
# ------------------------------------------------------------#
EventBridgeRuleStartCpRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub EventBridgeStartCpRoleAiAgent-${SystemName}-${SubName}
Description: !Sub This role allows EventBridge to start pptx pdf converter CodePipeline for ${SystemName}-${SubName}.
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- events.amazonaws.com
Action:
- sts:AssumeRole
Path: /
Policies:
- PolicyName: !Sub EventBridgeStartCpPolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Action:
- "codepipeline:StartPipelineExecution"
Resource:
- !Sub "arn:aws:codepipeline:${AWS::Region}:${AWS::AccountId}:${CodePipelineAiAgent}"
DependsOn:
- CodePipelineAiAgent
# ------------------------------------------------------------#
# CodeBuild Project
# ------------------------------------------------------------#
CodeBuildProjectAiAgent:
Type: AWS::CodeBuild::Project
Properties:
Name: !Sub ${SystemName}-${SubName}-aiagent
Description: !Sub The build project for ${SystemName}-${SubName}-aiagent
ResourceAccessRole: !GetAtt CodeBuildResourceAccessRoleAiAgent.Arn
ServiceRole: !GetAtt CodeBuildServiceRoleAiAgent.Arn
ConcurrentBuildLimit: 1
Visibility: PRIVATE
Source:
Type: CODEPIPELINE
SourceVersion: refs/heads/main
Environment:
Type: ARM_CONTAINER
ComputeType: BUILD_GENERAL1_SMALL
Image: "aws/codebuild/amazonlinux-aarch64-standard:3.0"
ImagePullCredentialsType: CODEBUILD
PrivilegedMode: true
EnvironmentVariables:
- Name: AWS_DEFAULT_REGION
Type: PLAINTEXT
Value: !Sub ${AWS::Region}
- Name: AWS_ACCOUNT_ID
Type: PLAINTEXT
Value: !Sub ${AWS::AccountId}
- Name: IMAGE_REPO_NAME
Type: PLAINTEXT
Value: !Ref EcrRepositoryAiAgent
TimeoutInMinutes: 30
QueuedTimeoutInMinutes: 60
Artifacts:
Type: CODEPIPELINE
Cache:
Type: NO_CACHE
LogsConfig:
CloudWatchLogs:
GroupName: !Sub /aws/codebuild/${SystemName}-${SubName}-aiagent
Status: ENABLED
S3Logs:
EncryptionDisabled: true
Location: !Sub arn:aws:s3:::${S3BucketLogs}/codebuildBuildlog
Status: ENABLED
Tags:
- Key: Cost
Value: !Sub ${SystemName}-${SubName}
DependsOn:
- EcrRepositoryAiAgent
- CodeBuildResourceAccessRoleAiAgent
- CodeBuildServiceRoleAiAgent
# ------------------------------------------------------------#
# CodeBuild Resource Access Role (IAM)
# ------------------------------------------------------------#
CodeBuildResourceAccessRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub CbResourceAccessRoleAiAgent-${SystemName}-${SubName}
Description: This role allows CodeBuild to access CloudWatch Logs and Amazon S3 artifacts for the project's builds.
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- codebuild.amazonaws.com
Action:
- sts:AssumeRole
Path: /
Policies:
- PolicyName: !Sub CbResourceAccessPolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Action:
- "logs:CreateLogGroup"
- "logs:CreateLogStream"
- "logs:PutLogEvents"
Resource:
- !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/codebuild/${SystemName}-${SubName}-aiagent"
- !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/codebuild/${SystemName}-${SubName}-aiagent:*"
- Effect: Allow
Action:
- "s3:PutObject"
- "s3:GetObject"
- "s3:GetObjectVersion"
- "s3:GetBucketAcl"
- "s3:GetBucketLocation"
Resource:
- !Sub arn:aws:s3:::${S3BucketLogs}
- !Sub arn:aws:s3:::${S3BucketLogs}/*
# ------------------------------------------------------------#
# CodeBuild Service Role (IAM)
# ------------------------------------------------------------#
CodeBuildServiceRoleAiAgent:
Type: AWS::IAM::Role
Properties:
RoleName: !Sub CbServiceRoleAiAgent-${SystemName}-${SubName}
Description: This role allows CodeBuild to interact with dependant AWS services.
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- codebuild.amazonaws.com
Action:
- sts:AssumeRole
Path: /
ManagedPolicyArns:
- arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryPowerUser
Policies:
- PolicyName: !Sub CbServicePolicyAiAgent-${SystemName}-${SubName}
PolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Action:
- "codecommit:GitPull"
Resource: !GetAtt CodeCommitRepoAiAgent.Arn
- Effect: Allow
Action:
- "ssm:GetParameters"
Resource:
- !Sub "arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${SystemName}_${SubName}_*"
- Effect: Allow
Action:
- "s3:*"
Resource:
- !Sub arn:aws:s3:::${S3BucketArtifact}
- !Sub arn:aws:s3:::${S3BucketArtifact}/*
- !Sub arn:aws:s3:::${S3BucketLogs}
- !Sub arn:aws:s3:::${S3BucketLogs}/*
- Effect: Allow
Action:
- "logs:CreateLogGroup"
- "logs:CreateLogStream"
- "logs:PutLogEvents"
Resource:
- !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/codebuild/${SystemName}-${SubName}-aiagent"
- !Sub "arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/codebuild/${SystemName}-${SubName}-aiagent:*"
- Effect: Allow
Action:
- "codebuild:CreateReportGroup"
- "codebuild:CreateReport"
- "codebuild:UpdateReport"
- "codebuild:BatchPutTestCases"
- "codebuild:BatchPutCodeCoverages"
Resource:
- !Sub "arn:aws:codebuild:${AWS::Region}:${AWS::AccountId}:report-group/${SystemName}-${SubName}-aiagent*"
DependsOn:
- CodeCommitRepoAiAgent
- S3BucketArtifact
- S3BucketLogs
まとめ
いかがでしたでしょうか？
とりあえず Amazon Bedrock AgentCore Runtime がデプロイされるところまで作りました。この後は React アプリ画面でエージェントとストリームレスポンスの会話ができるところまできちんと作り込もうと思います。
本記事が皆様のお役に立てれば幸いです。
